| Ask Lasest Price | |
| Brand Name : | Ming tech |
| Model Number : | MT9 |
| Certification : | Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS |
| Price : | negotiate |
| Delivery Time : | 15 days< |
| Supply Ability : | 1300 sets per days |
| Payment Terms : | T/T, PayPal, Western Union, D/P, CommBank. |

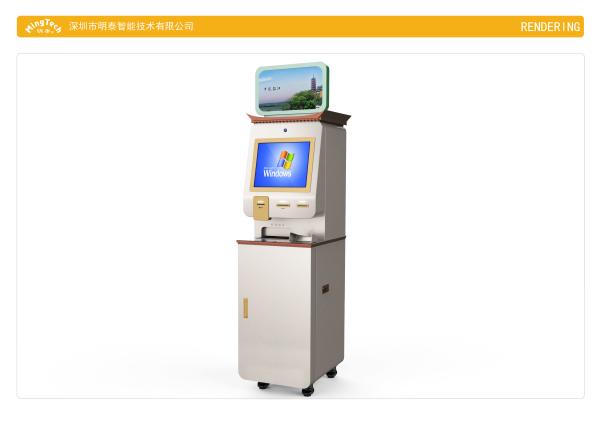

Top-side customization standard build in funtions terminal.( 6000mAh battery)
| Specifications | ||
| Modular | Parameter | |
| Mother board | Interl H61 industrial i3 LGA1155 CPU processor, DDR3 1600MHz 4GB memory. SSd MSATA 128GB. Realtek RTL8111E Gigabit-NIC. Wakeup on LAN function . Intergrated ALC662 audio card.Single ethernet interface,single LVDS interface, two VGA interface, 7 COM slots, 10 USB interfaces, single MINIPCIE interface, single MINI SATA interface. WCDMA available.Intelligent temperature control fans function. | |
| Monitor | 21.5 inchs buill-in one infrared ray screen,VGA slot,DC12V,resolution ration 1280*768,display ratio 4:3,luminace: 250cd/m2,capacitive touch screen USB interface,resolution ration 4096*4096. Multidirectional touch available | |
| Card Reader | contact:ISO7816 Atype 5V/B type,3V/C type standard. card
1.8,4442,4428. magnetic stripe: ISO7810/7811 standard. Magnetic card 1, 2, 3 track read. Frequency:13.56MHz±7KHz. Serial connection interface. | |
| UPS | UPS backup powerbank,500VA/300W,RS232 interface,input/output AC220V/50Hz±1Hz,time switch,10-30 mins stand by time | |
| Banknotes(coins) acceptor(small amount) | standard cctalk/RS232 interface,DC12V/2A,under 0.04% return rate,receiving speed 2/sec,more than 32 currencies available.all of Turkish coins are receivable.2 different countries' coin can be accepted simultaneously; Omnibearing currency recognition,1000 pieces capacity,adpotion 99%,difference countries currency available. | |
| Build-in Thermal printer | Line thermal printer,print density 8 dots/mm,speed 150 mm/s(MAX),receipt wide 80mm,printing character: ASCII/GB18030/multinational character set,DC12V/2A,RS-232 communication interface,black label detection,paper out indicator(Neop),anti-paper jamming. Paper wide: 80mm. Scroll diameter:150mm. | |
| Injecting screen | 17 inchs ,DC12V,dispaly ratio 1280*1024；resolution ratio 16:10,GVA interface ,luminace :250cd/m2, HD radio and image available. | |
| Encrpytion tachniques keyboard | 16 keys encryption stainless steel brushed panel,dust-proof,water-proof,anti-explosion, prevention burglary,drilling-resistant,prying-resistant etc. key buttoms life:>3 millions times | |
Applicable Field:
Business Organizations: Supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds,
insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices,
hospital, schools;
Public Places: Subway, airports, stations, gas stations, toll
stations, bookstores, parks, exhibition halls, stadiums, museums,
convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial
buildings, model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs,
clubs, massage rooms, bars, cafes, Internet bars, beauty shops,
golf course
|
|
