2 SAM slot Card reader module.( Windows/Linux/Android)
Features
Card Standard
Specifications
| Project | Parameters Of Specifications |
| Power Interface | |
| Supply Voltage | DC 5V±5% |
| Power Source | USB |
| Supply Current | ≦300mA |
| Cable length, cord | 210mm,4Pin 1.25mm pitch double-ended |
| Communication Interface | |
| Interface | USB HID |
| Speed | USB Full Speed(12Mbps) |
| Contactless IC Card Interface | |
| Standard | ISO14443 Type B, Mifare S50/S70 |
| Protocol | ISO14443 /1/2/3/4 T=CL |
| Frequency | 13.56MHz±7kHz |
| Speed | 106 Kbps |
| Operating Distance | 0-15mm |
| Contact IC Card Interface | |
| Standard | ISO7816 Type A 5V/Type B 3V card; |
| Protocol | T=0 and T=1 |
| Memory card support | Memory-based smart cards |
| Smart card read/write Speed | 9600~57600bps |
| Short Circuit Protection | +5V/GND on all pins |
| Card Connector | Landing |
| Card Insertion Cycles | min.100,000 |
| Built-in Perpherals | |
| Size | MB:60mm×57.2mm； Ant:64mm×32mm； |
| Cable length, cord | Antenna board:100mm length 4pin,1.25mm pitch double-ended |
| Buzzer | Monotone |
| Device SN | Support |
| Device Version | Support |
| Supporting System | Windows 2000/NT/XP/Vista/Windows 7/Linux/Android |
| Working Environment | |
| Temperature | 0℃ ~ 50℃ |
| Humidity | 10% ~ 90% |
| Technical Support | |
| Drive | Drive-free |
| API | Windows 32&64bit SDK |
| Technical Service | Supply SDK,Demo and Help doc |
Product Size(unit:mm)

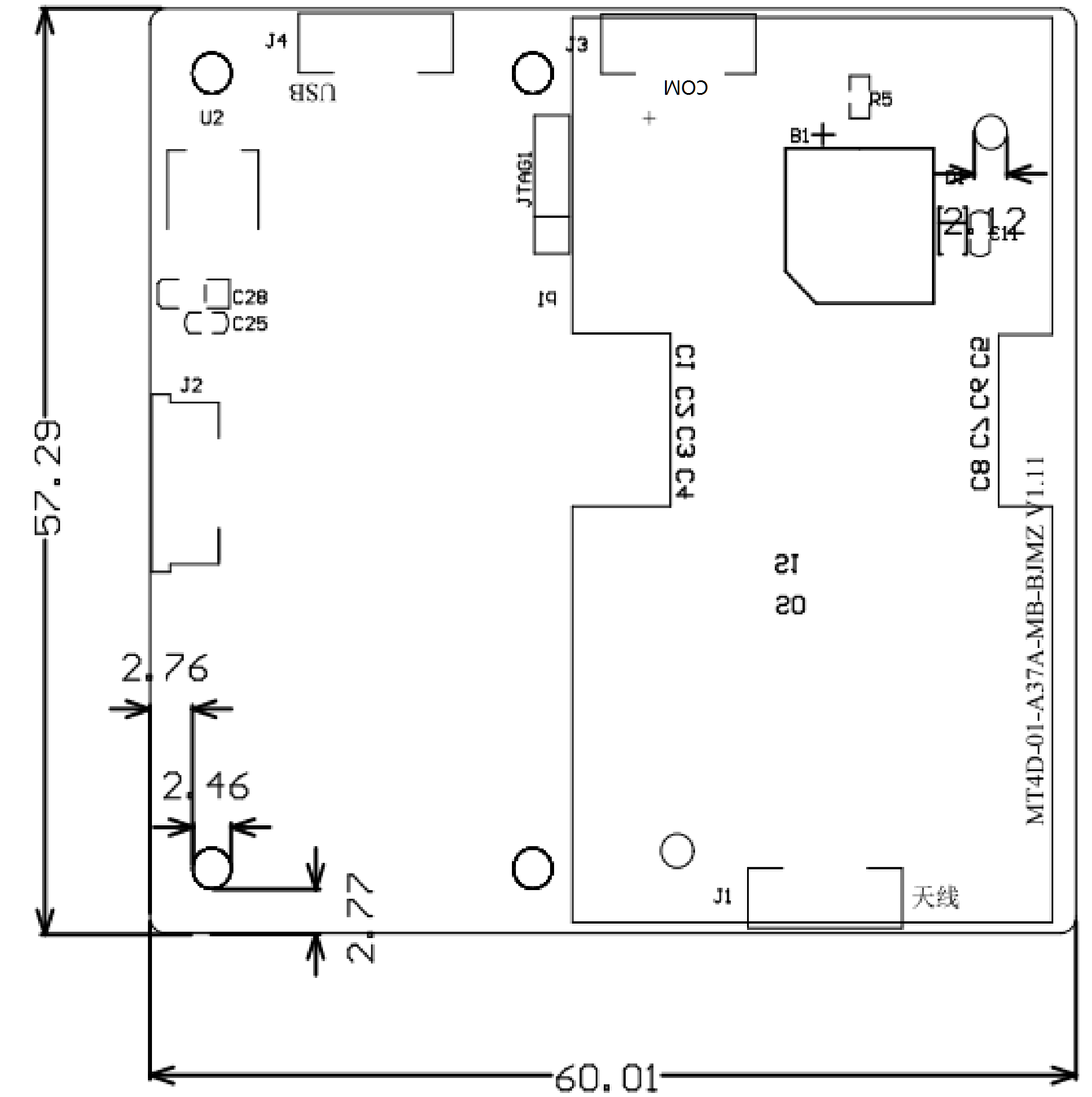

(1)PCB of MB
(2)PCB of Antenna board
| All in one | Different standard for different countries; |
| Advanced | Full self-intellectural property; |
| Almighty | Apply to kinds of data collection device demands; |
| Excellent | Help you got a small RIFD reader easily; |
| Humanist | Standard interface for easy development; |
| Wide use | Best choice for small fixed reader; |
|
|
