| Brand Name : | Ming tech |
| Model Number : | MT9 |
| Certification : | Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS |
| Price : | negotiate |
| Delivery Time : | 15 days< |
| Supply Ability : | 1300 sets per days |
| Payment Terms : | T/T, PayPal, Western Union, D/P, CommBank. |

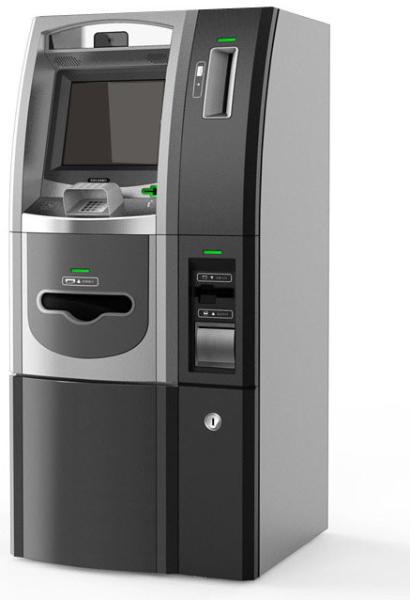

Standard cash acceptor Payment Kiosk self-serve terminal (above 50000 hours pannel life).
| Specifications | ||
| Modular | Parameter | |
| Mother board | Interl H61 industrial i3 LGA1155 CPU, DDR3 1600MHz 4GB memory. SSd MSATA 128GB. Realtek RTL8111E Gigabit-NIC. Wakeup on LAN function . Intergrated ALC662 audio card.Single ethernet interface,single LVDS interface, two VGA interface, 7 COM slots, 10 USB interfaces, single MINIPCIE interface, single MINI SATA interface. WCDMA available.Intelligent temperature control fans function. | |
| Monitor | 19inch capacitive touch screen AIO,display ratio 4:3,water proof, anti-explosion,dust-proof,luminance 300cd/m2,contract ratio 1500:1,resulotion:1280×1024@60Hz,screen hardness 7H,touching respond time <10ms, multidirection touch available.VGA slot. | |
| Card Reader | contact:ISO7816 Atype 5V/B type,3V/C type standard. card
1.8,4442,4428. contactless:Standard ISO14443 Type,S50/S70/CPU/MIFARE magnetic stripe: ISO7810/7811 standard. Magnetic card 1, 2, 3 track read. Frequency:13.56MHz±7KHz. Serial connection interface. | |
| Banknotes(coins) out dispenser | standard RS232 interface,DC24V,4 money storage boxes,each with 500 PCS capacity ,recycle bin with 40PCS capacity,4PCS/sec, | |
| Banknotes(coins) acceptor | standard cctalk/RS232 interface,DC12V/2A,under 0.04% return rate,receiving speed 2/sec,more than 32 currencies available.all of Turkish coins are receivable.2 different countries' coin can be accepted simultaneously; Omnibearing currency recognition,1000 pieces capacity,adpotion 99%,difference countries currency available. | |
| Build-in Thermal printer | Line thermal printer,print density 8 dots/mm,speed 150 mm/s(MAX),reciept wide 80mm,printing character: ASCII/GB18030/multinational character set,DC12V/2A,RS-232 communication interface,black label detection,paper out indicator(Neop),anti-paper jamming. Paper wide: 80mm. Scroll diameter:150mm. | |
| surveillance carmera | USB interface ,8 megapixels,dynamic resolution 1280×720,automatic focusing,CMOS maximum 30FPS. | |
| Encrpytion tachniques keyboard | 16 keys encryption stainless steel brushed panel,dust-proof,water-proof,anti-explosion, prevention burglary,drilling-resistant,prying-resistant etc. key buttoms life:>3 millions times | |
|
|
