Card reader module
Features
Specifications
| Project | Parameters Of Specifications | |
| Power Interface | ||
| Supply Voltage | DC 5V±5% | |
| Supply Current | ≦300mA | |
| Cable | 4P/1.25mm,no Cable provided | |
| Communication Interface | ||
| Interface | TTL | |
| Speed | 115200bps | |
| Contactless IC Card Interface | ||
| Standard | ISO14443 Type A,Mifare S50/S70 | |
| Protocol | ISO14443 /1/2/3/4 T=CL,MIFARE | |
| Frequency | 13.56MHz±7kHz | |
| Speed | 106/212/424Kbps | |
| Operating Distance | 0~30mm | |
| Contact IC Card Interface | ||
| Standard | ISO 7816 Class A, B and C(5V, 3V, 1.8V) | |
| Protocol | T=0 and T=1 | |
| Memory card support | Memory-based smart cards | |
| Smart card read/write Speed | 9600~115200 bps | |
| Short Circuit Protection | +5V/GND on all pins | |
| Card Connector | Landing | |
| Card Insertion Cycles | min.100,000 | |
| SAM Card Interface | ||
| Number | 3 Standard SAM Slots, | |
| Standard | ISO 7816 Class A (5V) | |
| Protocol | T=0 and T=1 | |
| Smart card read/write Speed | 9600~38400 bps | |
| Built-in Perpherals | ||
| Device Version | Support | |
| Device SN | Support | |
| Supporting System | Windows XP/7/8/10,Linux/Android | |
| Working Environment | ||
| Temperature | 0℃ ~ 50℃ | |
| Humidity | 10% ~ 90% | |
| Technical Support | ||
| API | Windows 32&64bit SDK | |
| Technical Service | Supply SDK and Demo | |
| Certifications | Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS | |
Applications
Product Size(unit:mm)
Communication Interface:
Interface Definition:
| Interface | Definition |
| VCC | 5V power supply |
| Rx | TTL level,reader receiving interface |
| Tx | TTL level,reader sending interface |
| Gnd | Grounding |
Appendix 2
PCB Board for MB and Ant,Illustration:
Appendix 3

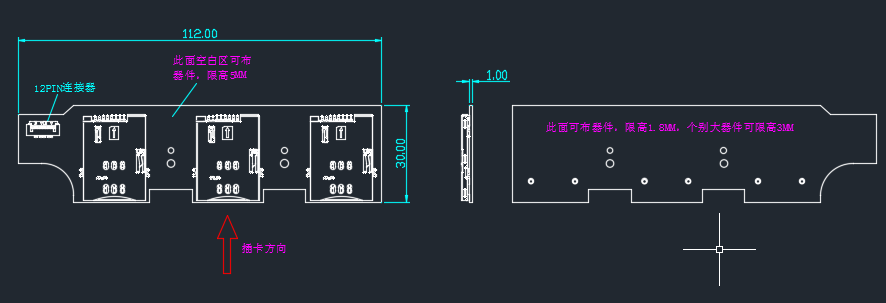

PCB Board for PSAM,Illustration:
Appendix 4
FPC connecting line:136.05±0.2mm FPC, Illustration:
| All in one | Different standard for different countries; |
| Advanced | Full self-intellectural property; |
| Almighty | Apply to kinds of data collection device demands; |
| Excellent | Help you got a small RIFD reader easily; |
| Humanist | Standard interface for easy development; |
| Wide use | Best choice for small fixed reader; |
|
|
